Volume Rendering

The swiftsimio.visualisation.volume_render sub-module provides an interface to render SWIFT data onto a fixed grid. This takes your 3D data and finds the 3D density at fixed positions, allowing it to be used in codes that require fixed grids such as radiative transfer programs.

This effectively solves the equation:

\(\tilde{A}_i = \sum_j A_j W_{ij, 3D}\)

with \(\tilde{A}_i\) the smoothed quantity in pixel \(i\), and \(j\) all particles in the simulation, with \(W\) the 3D kernel. Here we use the Wendland-C2 kernel.

The primary function here is swiftsimio.visualisation.volume_render.render_gas(), which allows you to create a gas density grid of any field, see the example below.

Example

from swiftsimio import load
from swiftsimio.visualisation.volume_render import render_gas

data = load("cosmo_volume_example.hdf5")

# This creates a grid that has units msun / Mpc^3, and can be transformed like
# any other unyt quantity.
mass_grid = render_gas(
    data,
    resolution=256,
    project="masses",
    parallel=True,
    periodic=True,
)

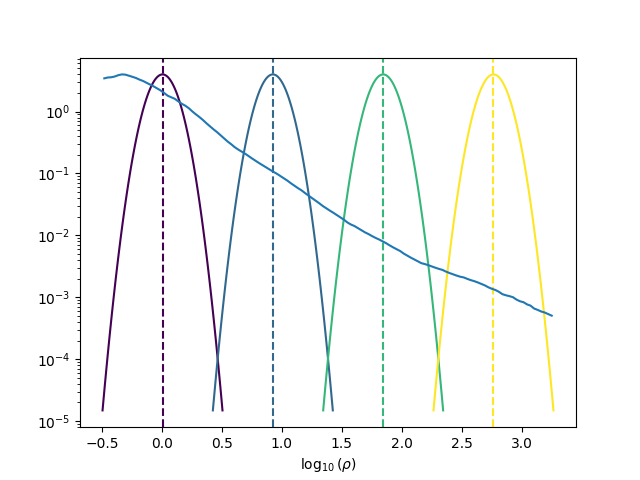

This basic demonstration creates a mass density cube.

To create, for example, a projected temperature cube, we need to remove the density dependence (i.e. render_gas() returns a volumetric temperature in units of K / kpc^3 and we just want K) by dividing out by this:

from swiftsimio import load
from swiftsimio.visualisation.volume_render import render_gas

data = load("cosmo_volume_example.hdf5")

# First create a mass-weighted temperature dataset
data.gas.mass_weighted_temps = data.gas.masses * data.gas.temperatures

# Map in msun / mpc^3
mass_cube = render_gas(
    data,
    resolution=256,
    project="masses",
    parallel=True,
    periodic=True,
)

# Map in msun * K / mpc^3
mass_weighted_temp_cube = render_gas(
    data,
    resolution=256,
    project="mass_weighted_temps",
    parallel=True,
    periodic=True,
)

# A 256 x 256 x 256 cube with dimensions of temperature
temp_cube = mass_weighted_temp_cube / mass_cube

Periodic boundaries

Cosmological simulations and many other simulations use periodic boundary conditions. This has implications for the particles at the edge of the simulation box: they can contribute to voxels on multiple sides of the image. If this effect is not taken into account, then the voxels close to the edge will have values that are too low because of missing contributions.

All visualisation functions by default assume a periodic box. Rather than simply summing each individual particle once, eight additional periodic copies of each particle are also taken into account. Most copies will contribute outside the valid voxel range, but the copies that do not ensure that voxels close to the edge receive all necessary contributions. Thanks to Numba optimisations, the overhead of these additional copies is relatively small.

There are some caveats with this approach. If you try to visualise a subset of the particles in the box (e.g. using a mask), then only periodic copies of particles in this subset will be used. If the subset does not include particles on the other side of the periodic boundary, then these will still be missing from the voxel cube. The same is true if you visualise a region of the box. The periodic boundary wrapping is also not compatible with rotations (see below) and should therefore not be used together with a rotation.

Rotations

Rotations of the box prior to volume rendering are provided in a similar fashion to the swiftsimio.visualisation.projection sub-module, by using the swiftsimio.visualisation.rotation sub-module. To rotate the perspective prior to slicing a rotation_center argument in render_gas() needs to be provided, specifying the point around which the rotation takes place. The angle of rotation is specified with a matrix, supplied by rotation_matrix in render_gas(). The rotation matrix may be computed with rotation_matrix_from_vector(). This will result in the perspective being rotated to be along the provided vector. This approach to rotations applied to the above example is shown below.

from swiftsimio import load
from swiftsimio.visualisation.volume_render import render_gas
from swiftsimio.visualisation.rotation import rotation_matrix_from_vector

data = load("cosmo_volume_example.hdf5")

# First create a mass-weighted temperature dataset
data.gas.mass_weighted_temps = data.gas.masses * data.gas.temperatures

# Specify the rotation parameters
center = 0.5 * data.metadata.boxsize
rotate_vec = [0.5,0.5,1]
matrix = rotation_matrix_from_vector(rotate_vec, axis='z')

# Map in msun / mpc^3
mass_cube = render_gas(
    data,
    resolution=256,
    project="masses",
    rotation_matrix=matrix,
    rotation_center=center,
    parallel=True,
    periodic=False, # disable periodic boundaries for rotations
)

# Map in msun * K / mpc^3
mass_weighted_temp_cube = render_gas(
    data,
    resolution=256,
    project="mass_weighted_temps",
    rotation_matrix=matrix,
    rotation_center=center,
    parallel=True,
    periodic=False,
)

# A 256 x 256 x 256 cube with dimensions of temperature
temp_cube = mass_weighted_temp_cube / mass_cube

Lower-level API

The lower-level API for volume rendering allows for any general positions, smoothing lengths, and smoothed quantities, to generate a pixel grid that represents the smoothed, volume rendered, version of the data.

This API is available through swiftsimio.visualisation.volume_render.scatter() and swiftsimio.visualisation.volume_render.scatter_parallel() for the parallel version. The parallel version uses significantly more memory as it allocates a thread-local image array for each thread, summing them in the end. Here we will only describe the scatter variant, but they behave in the exact same way.

To use this function, you will need:

x-positions of all of your particles, x.
y-positions of all of your particles, y.
z-positions of all of your particles, z.
A quantity which you wish to smooth for all particles, such as their mass, m.
Smoothing lengths for all particles, h.
The resolution you wish to make your cube at, res.

Optionally, you will also need: + the size of the simulation box in x, y and z, box_x, box_y and box_z.

The key here is that only particles in the domain [0, 1] in x, [0, 1] in y, and [0, 1] in z. will be visible in the cube. You may have particles outside of this range; they will not crash the code, and may even contribute to the image if their smoothing lengths overlap with [0, 1]. You will need to re-scale your data such that it lives within this range. Then you may use the function as follows:

from swiftsimio.visualisation.volume_render import scatter

# Using the variable names from above
out = scatter(x=x, y=y, z=z, h=h, m=m, res=res)

out will be a 3D numpy grid of shape [res, res, res]. You will need to re-scale this back to your original dimensions to get it in the correct units, and do not forget that it now represents the smoothed quantity per volume.

If the optional arguments box_x, box_y and box_z are provided, they should contain the simulation box size in the same re-scaled coordinates as x, y and z. The rendering function will then correctly apply periodic boundary wrapping. If box_x, box_y and box_z are not provided or set to 0, no periodic boundaries are applied
